The Original Window Design

Unique, elegant and timeless design with slim sight lines. The narrow frames of the windows increase the natural inflow of light.

VELFAC Classic specification

Materials - External finish: Aluminium or Wood | Internal finish: Wood | Glazing: Double or Triple

Opening - How Should Your Window Open? | Colours - Classic white, Elegant Black, or a Colour That Makes a Statement | Handles and Accessories

The VELFAC 200 System is a design icon, and the unique arrangement of frame means the sightlines are super-slim and identical for both opening and fixed lights alike.

This means that it is possible to create larger screens combining elements to create a modular architectural feature.

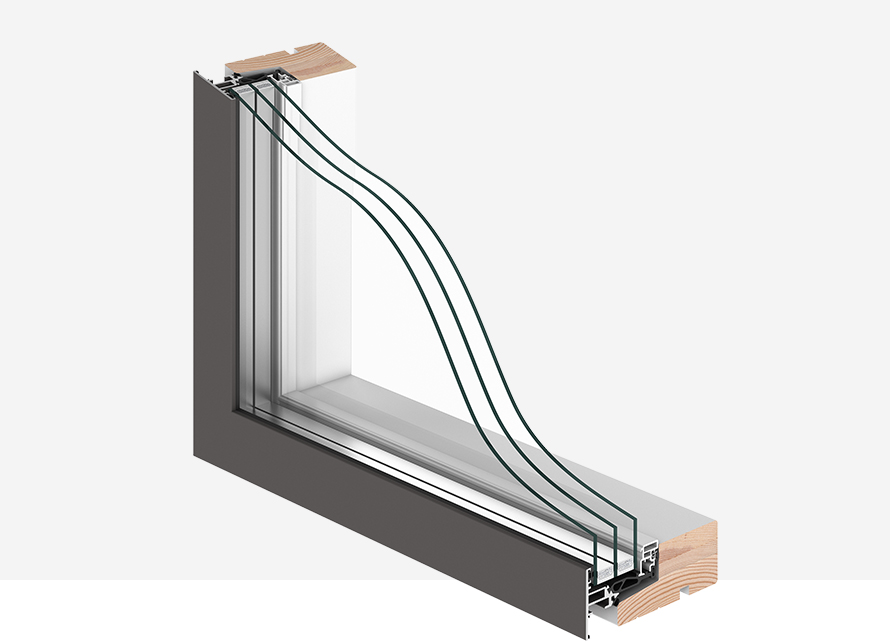

Triple glazing

Sightlines
93mm opening, 50mm fixed

Energy efficient = 0.82 W/m²K

Wind resistance
Class C4 (1600Pa or 114mph wind speed - hurricane)

Rw 43dB sound reduction

Water tightness 600Pa (70mph wind speed – violent storm)

Security – PAS 24 / Part Q and SBD compliant

12 years product warranty for alu. clad, 5 years for timber

VELFAC Classic alu clad / timber

A-labelled low-energy windows.

3-layer glass, durable aluminium on the outside and FSC-certified® pine wood on the inside.

VELFAC windows, patio doors and sliding doors are made of durable materials that require a minimum of maintenance. We are careful in the selection of suppliers and in the requirements we place on the materials. These are all the cornerstones of a quality product.

The exterior of the aluminium window is virtually maintenance-free in its lifetime and is well suited to the Great British climate with a lot of rain and wind.
When you choose windows and doors in aluminium on the outside, you do not have to paint the windows and your maintenance therefore only consists of keeping them clean and lubricating them a few times a year.

ur windows with 3-layer glazing are A-labelled low-energy windows, which provide a pleasant, bright indoor environment and as neutral a reproduction of colours of the surrounding nature as is technically possible.

The advantages of 3-layer glazing:

Achieve lower heat consumption due to good insulation performance
Reduce cold fallout and thus create a better indoor climate
Avoid drafts and therefore move the armchair very close to large windows and enjoy the view
Reduce the risk of overheating in summer

Insulating cavities

In a standard pane, cavities are created between the glass slices. In the cavities, there is the natural and harmless noble gas argon, which makes the pane highly insulating and helps to reduce the window's heat loss. Argon is extracted from the atmosphere and is the most common noble gas in nature.

FSC is an abbreviation for Forest Stewardship Council®. When you choose windows with FSC certification, you help to safeguard nature and the social conditions in the forests from which the wood comes. The FSC certification thus demonstrates that VELFAC meets the highest social and economic standards for the purchase and use of wood products..

How should your window open?

VELFAC 200 is available in many opening variants. Regardless of which you choose, the VELFAC 200 series has the same exterior look, so you get a uniform façade.

Top-guided window - for excellent ventilation

Top guided windows provide particularly good ventilation, as fresh air is able to enter from both above and below. Also they are very easy to operate.

Side-hung window - outward opening and perfect for fire egress routes

Sidehung windows, also called casement windows, are a type of window that opens outwards on hinges attached to the side of the window frame. They are a popular choice for houses as they provide good ventilation and the best “clear opening” area for the size of the frame.

Fixed window - unobstructed views and natural daylight

Fixed windows, also known as picture windows, are windows that cannot be opened or closed. They are designed to provide unobstructed views and allow natural light to enter a room.

Reversible window - Windows for easy cleaning

Reversible windows, also known as tilt-and-turn windows, are a type of window that when opened can be rotated up to 170 degrees to be cleaned from the inside of the house.

Side-guided window - Easy to operate and ideal for limited spaces

Side guided windows are a popular type of window in many houses. They are designed to slide horizontally along a track, creating a gap on the side ideal for cleaning your windows from the inside of the house.

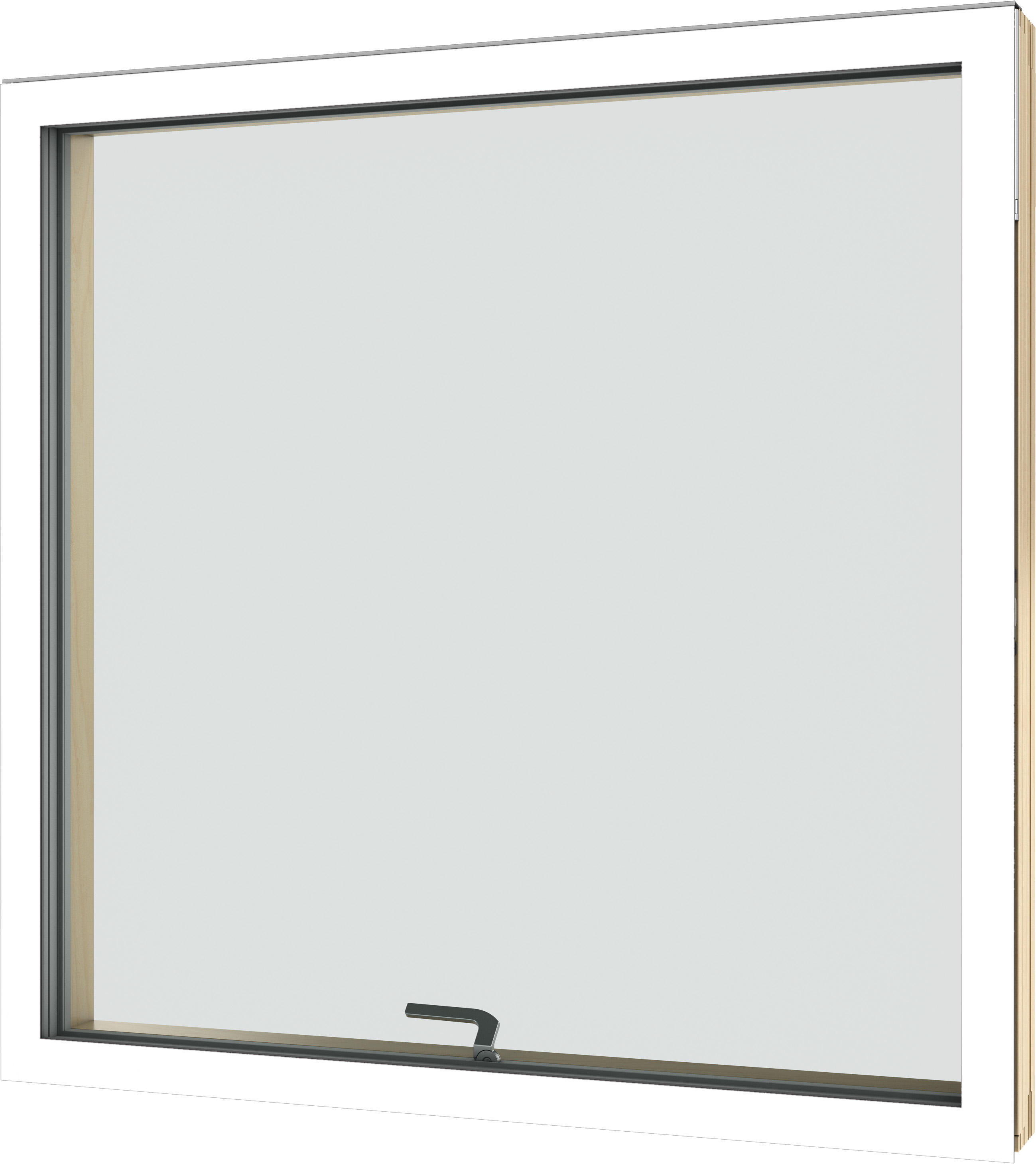

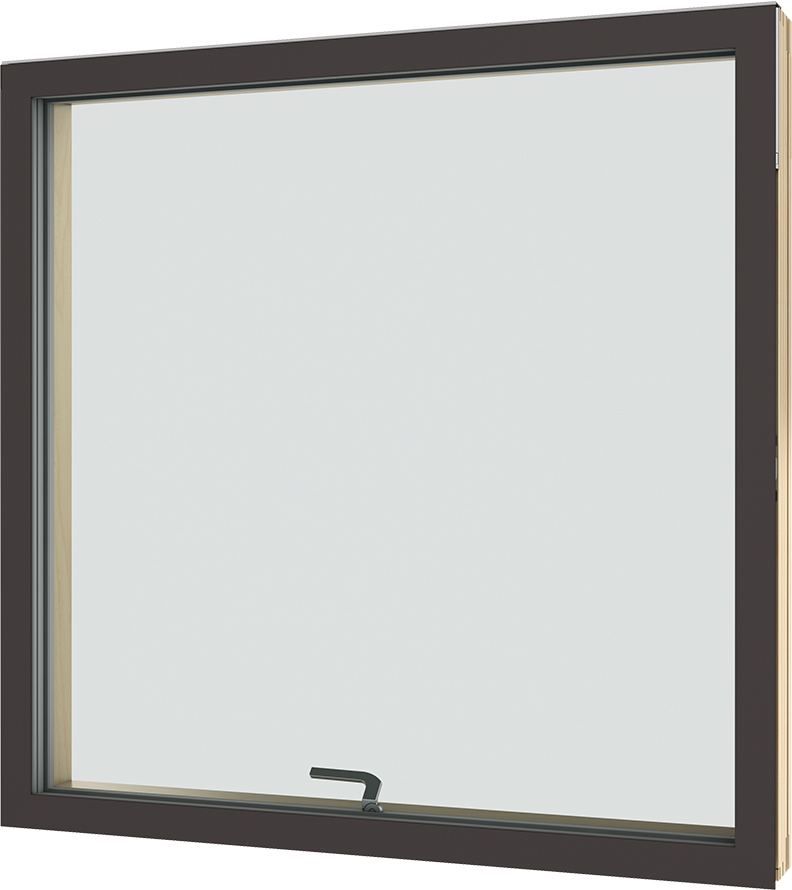

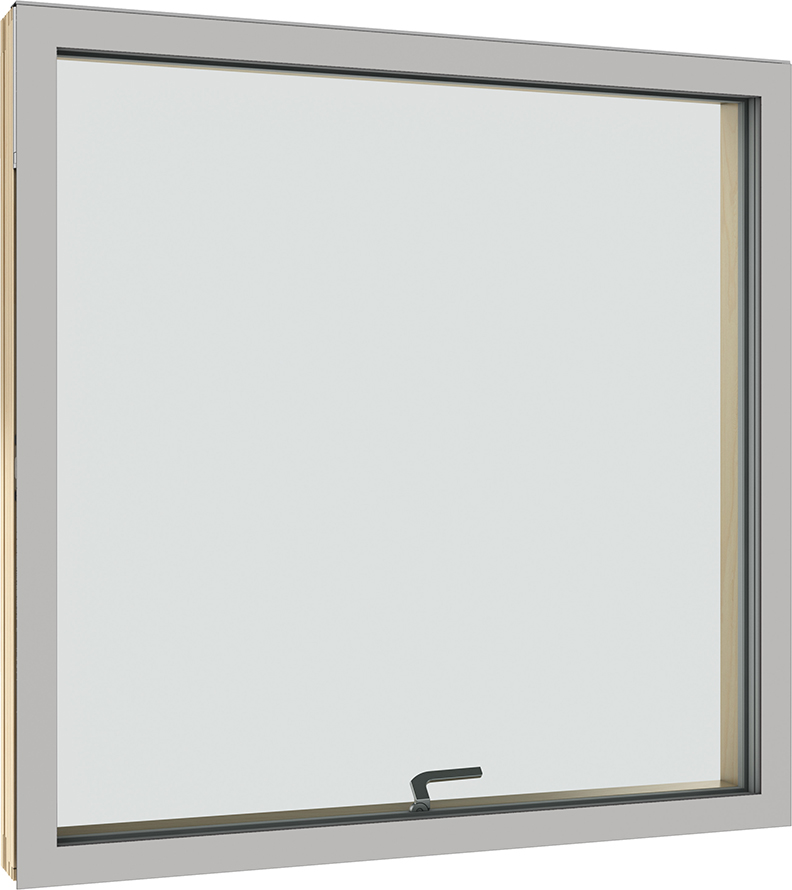

Colours - Classic white, exclusive black, or something that stands out?

The colors of your windows make a difference. And there is plenty to choose from. VELFAC windows are available in a multitude of RAL colours, and you can also get granite and anodised colours,

Standard: RAL colours

External aluminium windows and doors frames can be polyester-powder coated. Polyester powder coated aluminium is one of the most durable materials for window construction, offering a low maintenance, weather resistant surface.

If you require a colour that is not listed within our Standard colour range above, we are able to offer any colour from the RAL classic range; these will be subject to additional costs and lead times.

NB: THE COLOURS SHOWN CANNOT BE REPRODUCED EXACTLY AS SEEN ON SCREEN HERE.

Granite Colours

Granite is a GSB-approved powder coating, with the same durability and quality as "standard" powder coating, but with a modern textured finish that looks and feels like rough-cut granite.

NB: THE COLOURS SHOWN CANNOT BE REPRODUCED EXACTLY AS SEEN ON SCREEN HERE.

Anodized Colours

Anodised frames provide the highest level of hardness and protection as it becomes part of the aluminium frame. However, colour variations between order batches may occur as the aluminium frames are not painted but subject to a natural chemical process.
NB: THE COLOURS SHOWN CANNOT BE REPRODUCED EXACTLY. There may be colour variations as the frames are subjected to a natural chemical process and are not painted.
