Cero I

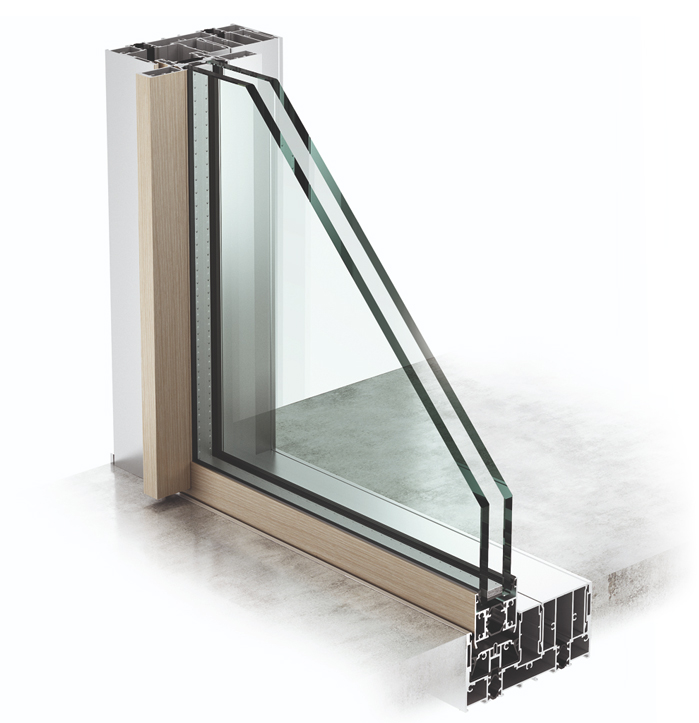

Cero I Profile

cero I

cero 1 is an uninsulated system with double glazing and a sash installation depth of 52 mm. It is particularly suitable for types of applications where thermal insulation is not required.

PROPERTIES cero I
SLIDING ELEMENTS (MAX. WIDTH × MAX. HEIGHT) 3 × 4 m / max. sash size 12 m²
FIXED GLAZING (MAX. WIDTH × MAX. HEIGHT) 3 × 4 m / max. sash size 12 m²
INSULATING GLASS 30 – 36 mm (ESG)
DAYLIGHT / GLASS PROPORTION 98%
RUNNER TECHNOLOGY Stainless-steel rollers and slide rails
SLIDE RAIL / BASE PROFILE barrier-free in accordance with DIN 18 025
SASH WEIGHT max. 600 kg
SURFACE AREAS 34 mm all around
FRAME HEIGHT 0 – 75 mm
SPECIAL REQUIREMENTS
  • Connection to alarm system, position monitoring and notification systems such as glass-breakage sensors
  • Functional glass protecting against break-in, bullet impact and noise
  • Electrical drive
TECHNICAL FEATURES
  • Replaceable rollers (without removing the sashes)
  • Reinforced brush seals in front of rollers
  • Glazing rebate ventilation and draining excluding vertical sash sealing
  • Glass thickness tolerances of up to 5 mm possible
  • Linear load transfer in structur
  • Polyethylene-reinforced Q-Lon seals
  • 24 mm locking latch in locking point/frame profile
  • Locking points adjustable by +/–5 mm
