Composite Door Design Options

Composite Door Design Options

The door to your house is the gateway to your home. Your choice of entrance door and the way it looks influences your home’s architectural expression. Make a grand entrance with a bold front door or bring fluidity to your space with sliding patio doors; a great door will change the way you live. Colour is another important aspect of expression to consider.


Door Opening Types

The drawings shown below are examples of options available. Contact Rationel for information about further options.

Entrance Doors

Entrance Doors

These are available as inward or outward opening. They are hung on grey powder-coated adjustable hinges and fitted with a minimum three-point locking espagnolette bolt.

Available in Rationel AURA/Rationel AURAPLUS/Rationel FORMA/Rationel FORMAPLUS

Panelled Doors

Panelled Doors

These are available as inward or outward opening, hung on grey powder-coated adjustable hinges and fitted with a minimum three-point locking espagnolette bolt.

Available in Rationel AURA/Rationel AURAPLUS/Rationel FORMA/Rationel FORMAPLUS

Terrace Doors

Terrace Doors

Terrace doors are available as either inward or outward opening, and are ideal for access to balconies, gardens and patios.

Doors which open outwards have an inbuilt friction brake, operated by turning the handle down in any given position. They are hung on grey powder coated adjustable hinges and fitted with a minimum three-point locking espagnolette bolt.

Available in Rationel AURA/Rationel AURAPLUS/Rationel FORMA/Rationel FORMAPLUS



Window Doors

Window Doors

Window doors are available as outward opening only, and are ideal for access to balconies, gardens and patios.

Window doors come fitted with an inbuilt friction brake, operated by turning the handle down in any given position. They are hung on grey powder coated adjustable hinges and fitted with a minimum three-point locking espagnolette bolt.

Available in Rationel AURA/Rationel AURAPLUS/Rationel FORMA/Rationel FORMAPLUS



Tilt & Turn Doors

Tilt & Turn Doors

Tilt and turn doors are available as inward opening only and function in two ways. They are hinged from the side and open inwards, or for ventilation, the leaf can be tilted in at the top. Tilt and turn doors can be cleaned from the inside.

Available in Rationel AURAPLUS triple glazed only.

Sliding Patio Doors

Sliding Patio Doors

Rationel sliding patio doors are designed to be as beautiful as the views they frame. Sliding Patio Doors, where one half slides and the other is fixed, are ideal when space is at a premium. The sliding part lifts easily and glides in front of the fixed section to create an opening of up to 1.55 metres.

Available in Rationel AURAPLUS triple glazed only.


Flush Entrance Doors

Flush entrance doors can be customised, with several options to mix and match your prefer red door with vision panel style and position.

Plain

Plain

Vertical

Vertical

Diagonal

Diagonal

Herringbone

Herringbone

Oval

Plain

Antique

Plain


Window Types

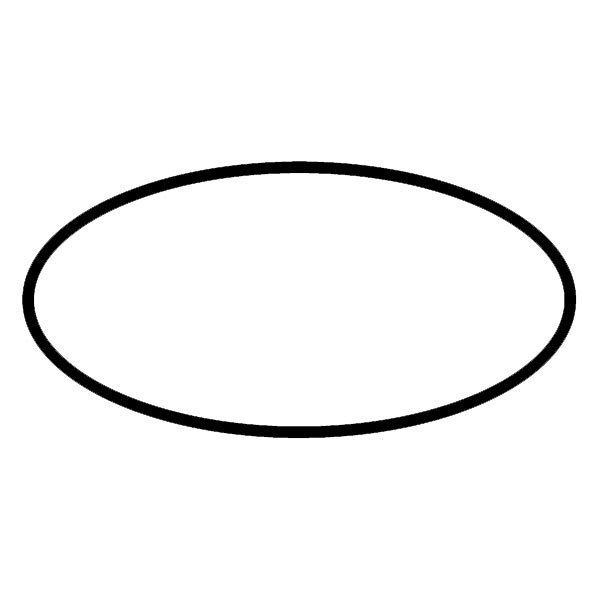

Oval

Oval

Farmhouse

Farmhouse

Rectangle

Rectangle

Square

Square

Circle

Circle

Diamond

Diamond


Glazed Entrance Doors and Patio Doors

Glazed entrance doors can also be customised. We can recommend standard options or work with you to create any variation you require.

Glazed Door

Glazed Door

Glazed Door

Glazed Door
Single glazing bar

Glazed Door

Glazed Door
Two glazing bars

Glazed Door

Glazed Door
Multi-light

Glazed Door

Glazed Door
Multi-light

Glazed Door

Glazed Door
Multi-light


Minimum/Maximum Sizes

Entrance Doors

Entrance Doors

Minimum Width
653mm

Minimum Height
1703mm

Maximum Width
1198mm

Maximum Height
2398mm

Panelled Doors

Panelled Doors

Minimum Width
653mm

Minimum Height
1703mm

Maximum Width
1198mm

Maximum Height
2398mm

Terrace Doors

Terrace Doors

Minimum Width
1188mm

Minimum Height
1703mm

Maximum Width
2328mm

Maximum Height
2498mm

Window Doors

Window Doors

Minimum Width
938mm

Minimum Height
1703mm

Maximum Width
2328mm

Maximum Height
2398mm

Tilt & Turn Doors

Tilt & Turn Doors

Minimum Width
1003mm

Minimum Height
1803mm

Maximum Width
1998mm

Maximum Height
2198mm

Sliding Patio Doors

Sliding Patio Doors

Minimum Width
1788mm

Minimum Height
1863mm

Maximum Width
3588mm

Maximum Height
2388mm


For Inspiration

A selection of the numerous design options we can offer...

Entrance door - 6 raised panels

Entrance door
6 raised panels

Entrance door - 5 raised panels

Entrance door
5 raised panels

Entrance door - 2 glass panes, 3 smooth panels

Entrance door
2 glass panes, 3 smooth panels

Entrance door - 4 glass panes, 3 raised panels

Entrance door
4 glass panes, 3 raised panels

Entrance door - 6 glass panes, 2 raised panels

Entrance door
6 glass panes, 2 raised panels

Entrance door - 6 glass panes, 1 smooth panel

Entrance door
6 glass panes, 1 smooth panel

Entrance door - 10 smooth panels

Entrance door
10 smooth panels

Entrance door - 4 glass panes, 6 raised panels

Entrance door
4 glass panes, 6 raised panels

Entrance door - 6 glass panes, 4 raised panels

Entrance door
6 glass panes, 4 raised panels

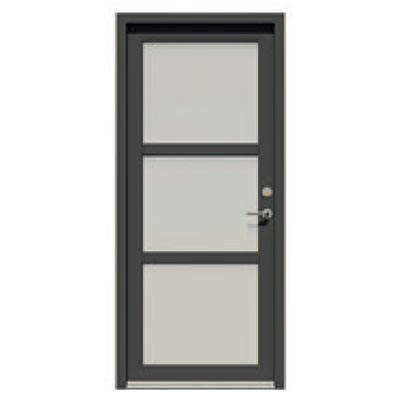

Entrance door - 3 glass panes

Entrance door
3 glass panes

Entrance door with sidelight - 3 glass panes

Entrance door with sidelight
3 glass panes

Entrance door - 2 glass panes, 2 smooth panels

Entrance door
2 glass panes, 2 smooth panels

Entrance door - 1 glass pane

Entrance door
1 glass pane

Entrance door - 2 glass panes

Entrance door
2 glass panes

Entrance door with sidelight - 2 glass panes, 4 raised panels

Entrance door with sidelight
2 glass panes, 4 raised panels

Entrance door - 6 raised panels

Entrance door
6 raised panels

Entrance door - 4 raised panels

Entrance door
4 raised panels

Panelled door - vertical pattern, glass pane (small)

Panelled door
Vertical pattern, glass pane (small)

Panelled door - smooth, glass pane

Panelled door
Smooth, glass pane

Panelled door
Smooth, glass pane (large)

Panelled door - Smooth, 4 glass panes

Panelled door
Smooth, 4 glass panes

Panelled door - Smooth, glass pane

Panelled door
Smooth, glass pane

Panelled door - smooth, glass pane

Panelled door
Smooth, glass pane

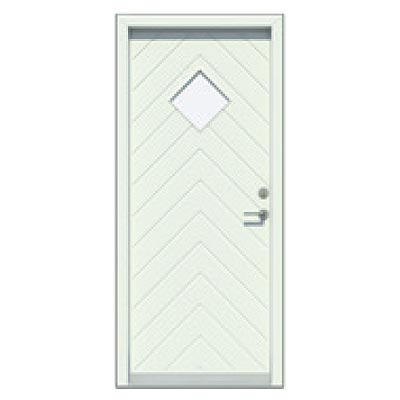

Panelled door
Herringbone pattern, glass pane (small)

Panelled door - Smooth

Panelled door
Smooth

Panelled door - Round glass pane (large)

Panelled door
Round glass pane (large)

Panelled door - smooth, glass pane (small)

Panelled door
Smooth, glass pane (small)

Panelled door with integrated sidelight - Smooth

Panelled door with
integrated sidelight - Smooth

Panelled door with integrated sidelight - Herringbone pattern

Panelled door with integrated
sidelight - Herringbone pattern

Panelled door with sidelight - Smooth

Panelled door
with sidelight - Smooth

Panelled door with sidelight and toplight - Smooth

Panelled door with sidelight
and toplight - Smooth

Terrace door - 1 glass pane

Terrace door
1 glass pane

Double window door - 2 glass panes, single rail

Double window door
2 glass panes, single rail

Sliding patio door - 2 glass panes

Sliding patio door - 2 glass panes
Only available in RATIONEL auraplus
