Rationel AURAPLUS
AURAPLUS
AURAPLUS comes with external aluminium cladding, which easily adds another 20+ years to its life expectancy, with all the benefits of natural wood on the inside. In addition, you can add dual colour with no extra charge, adding versatility to your home style, combined with very minimal external maintenance.
Key features:
- Aluminium-clad timber frame
- Low-maintenance
- Over 200 colours available with no extra charge for dual colour
- Best performance
Triple glazed:
- 0.79W/m2 K U-value*
- 42 dB Rw sound reduction
Double glazed:
- 1.29 W/m2 K U-value*
- 40 dB Rw sound reduction
See this product in action!
Take a look at these Case Studies:
Larch House - Modernising a Rural Kent Cottage
Fountains Cottages - A Cosy Cottage Renovation in Nidderdale
Firbank - A Luxury Development in Derbyshire Featuring Rationel
With sleek, clean lines, the aluminium-clad timber AURAPLUS range is Rationel's most popular style. Inviting maximum daylight into your indoor environment, this design is your ticket to warmth and serenity every day.
At the forefront of modern energy optimisation, the range is perfect for use in low-energy or Passive House projects, allowing high levels of daylight in so that solar heat gain is achieved. This free heat is the best energy source available and also provides a healthy and comfortable indoor climate. And with sustainably-sourced timber from FSC®-certified forests, you can be confident that your product purchase is an environmentally-conscious one.
Choosing AURAPLUS combines a beautiful natural look with a clean contemporary design. With high performance 52mm triple-glazing or 32mm double-glazing, AURA windows achieve U values as low as 0.79, which is ideal for low energy buildings and Passive House construction. Come rain or shine, even in the harshest of weather conditions, the high-performance windows ensure the utmost in durability and insulation. What’s more, AURAPLUS comes with security hardware as standard to meet Secured by Design requirements, including several locking points around the frame and reinforced fittings.


Product Details

Two gaskets

Fully adjustable ironmongery

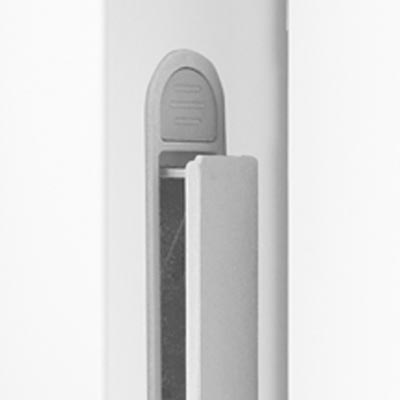

Option of trickle vent

Security ironmongery and option of glazing bar (31 mm)
Opening Types

Top Guided
Top Guided windows are a simple, elegant and user-friendly design. Opening is controlled by tracks and slides. When opening the window the top of the sash slides downwards as the bottom of the sash opens outwards. Adjustable friction ironmongery allows an almost infinite choice of open positions.

Top Swing
In everyday operation the fully reversible window functions as a Top Guided window. However it is possible to turn the sash through 170 degrees to clean the glass from the inside.

Fixed Light
Fixed Light windows are ideal wherever maximum internal light and solar heat gain is required. Fixed Lights can be fitted with trickle vents for ventilation.

Side Guided
Side Guided windows are controlled by tracks and slides that allow the window to be fixed in any open position. However, when opened, the hinge side of the sash moves toward the middle to create an opening that allows the glass to be cleaned from the inside.

Side Hung
Side Hung windows are controlled with tracks and slides. On windows over 424 mm wide and 530mm high, the handle controlled friction brake allows the window to be fixed in any open position.

Tilt & Turn
Tilt and Turn windows function in two ways. The tilt function opens the top of the sash inwards for ventilation, whilst the turn function creates an inward opening side hung operation. Tilt & turn windows can be cleaned from the inside and can also be used as emergency exits. This opening style is also available solely as a bottom hung window (with handle at the top of the sash) or as an inward opening side hung window.
Colours
When choosing windows and doors from Rationel, it is possible to enhance the appearance and character of your house through your choice of colour. Our standard colours suit the majority of architectural styles and traditions in the United Kingdom. We also offer a special range of colours, which you can use to highlight particular features of your home.
Standard RAL Colours
NB: THE COLOURS SHOWN CANNOT BE REPRODUCED EXACTLY.

Pure White
RAL 9010

Cream
RAL 9001

Signal White
RAL 9003

Yellow
RAL 9002

Light Grey
RAL 7035

Silk Grey
RAL 7044

Agate Grey
RAL 7038

Grey Aluminium
RAL 9007

Stone Grey
RAL 7030

Dusty Grey
RAL 7037

Silver Grey
RAL 7001

Slate Grey
RAL 7015

Basalt Grey
RAL 7012

Anthracite Grey
RAL 7016

Brown Grey
RAL 7013

Pearl Beige
RAL 1035

Pebble Grey
RAL 7006

Beige Grey
RAL 7006

Umbra Grey
RAL 7022

Olive Green
RAL 6003

Fir Green
RAL 8017

Chocolate
RAL 1035

Grey Brown
RAL 8019

Graphite Grey
RAL 7024

Signal Black
RAL 9004

Black Grey
RAL 7021

Black Brown
RAL 8022

Jet Black
RAL 9005
Rationel AURAPLUS windows and doors are available in one standard colour on both the inside and outside of the frame. It is possible to have a split colour solution on Rationel AURAPLUS, where you are able to have a different colour on the outside to what you choose for the inside.
If you require a colour that is not listed within our Standard colour range above, we are able to offer any colour from the RAL classic range; these will be subject to additional costs and lead times.
Granite
The colours shown cannot be reproduced exactly.

White
SAA10F Sable

Gris
2150 Sable

Gris
2400 Sable

Gris
2900 Sable

Noir
2100 Sable

Noir
900 Sable
Glazing Options
Rationel windows combine safety, privacy and energy-efficiency features that help you make the very best of your home.

Rationel SECURE - Our windows are built with security in mind. Read more about our Secured by Design certification or watch the video on our website

Rationel OBSCURE - Our panes are designed to restrict the view into private areas such as bathrooms. Choose from six different types of glass to get the combination of light and privacy you desire

Rationel SAFETY - Our glass holds together when shattered, reducing the risk of injury if someone falls into the pane. Panes can be made of toughened glass, laminated glass or a combination of both

Rationel FACADE - Used in buildings either to create a visually coherent facade or for special colour effects, FACADE is well suited to storey divisions as well as ventilated and insulated panels, and is available in special colours on request

Rationel SOUND - Our windows are built with security in mind. If your home is subject to environmental noise, our noise reducing panes are for you. Panes feature two glass sheets that act as a break, dramatically reducing the movement of sound into your home and creating a peaceful environment

Rationel SOLAR - Our solar panes limit the amount of sunlight and heat coming into a building, depending on the light and heat shielding levels required. This means significantly less energy will be required to cool hot rooms
Durability Tests
A series of test videos are available to view on the website.

Air Permeability
600PA

Wind Resistance
1600PA

Operation
10,000 Cycles

Water Tightness
600PA
Minimum/Maximum Sizes
Max width and height are subject to glass weight and spec.

Opening Function
Top Guided
Minimum Width
358mm
Minimum Height
388mm
Maximum Width
1798mm
Maximum Height
1598mm

Opening Function
Top Swing
Minimum Width
558mm
Minimum Height
548mm
Maximum Width
1598mm
Maximum Height
1598mm

Opening Function
Fixed Light
Minimum Width
250mm
Minimum Height
250mm
Maximum Width
2998mm
Maximum Height
2998mm

Opening Function
Side Guided
Minimum Width
458mm
Minimum Height
438mm
Maximum Width
998mm
Maximum Height
1598mm

Opening Function
Side Hung
Minimum Width
358mm
Minimum Height
358mm
Maximum Width
948mm
Maximum Height
1798mm

Opening Function
Tilt & Turn
Minimum Width
500mm
Minimum Height
510mm
Maximum Width
1300mm
Maximum Height
2400mm
Sectional Details
Triple Glazed

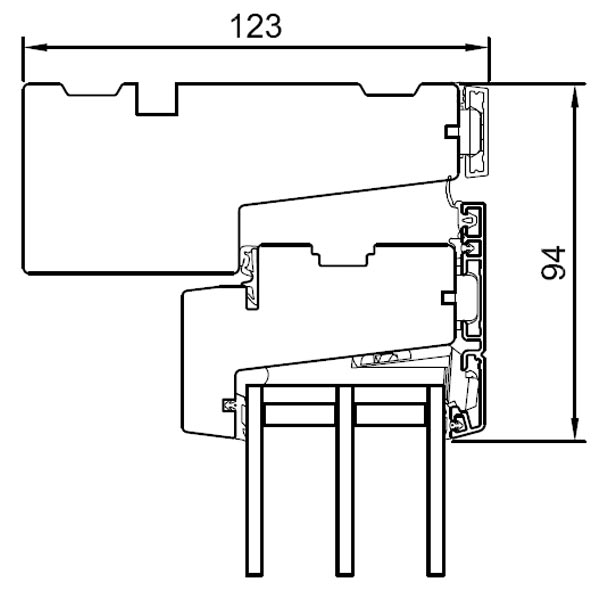

1. Vertical section head

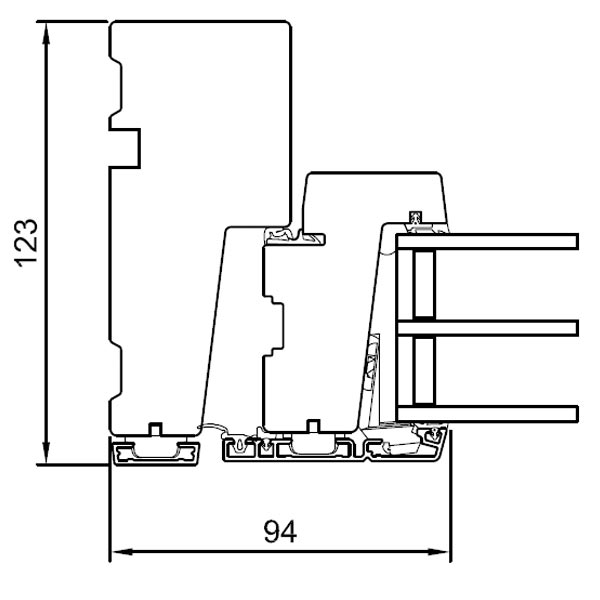

2. Horizontal section jamb

3. Vertical section sill

Best performance triple glazed
Double Glazed

1. Vertical section head

2. Horizontal section jamb

3. Vertical section sill

Best performance double glazed
Handles and Accessories
Handle
for outward opening window and patio door

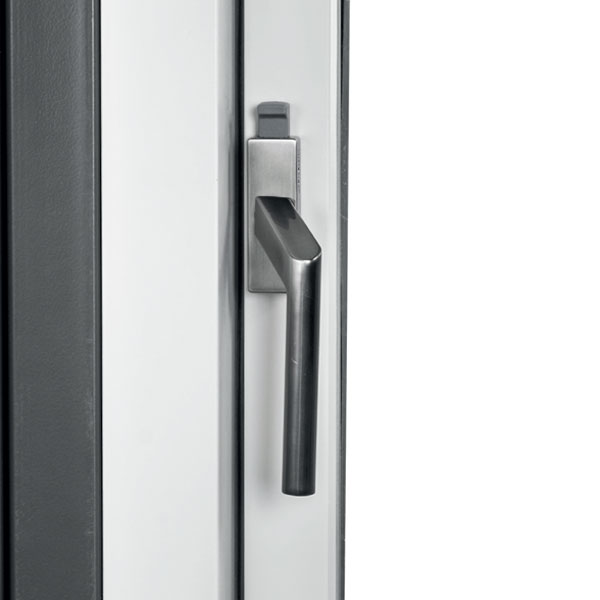

Handle
with child lock
Handle
for outward opening window and patio door
Patio door handle
with key internal only
Entrance door handle
with back plate key-key
Entrance door handle
with back plate key-thumb
Entrance door handle
with round rose key-key
Entrance door handle
with round rose key- thumb turn
Finger pull handle
for sliding door
Handle
for sliding door
Night vent position
Restrictor
Letter plate
Secured by Design
Letter plate
normal
Security Hardware
Both Rationel AURA & Rationel AURA+ come with security hardware as standard to meet SBD requirements. The vast majority of timber originates from FSC-certified forests.
